FEATURES

Fault self-recovery and corrective measure ability, convenient for maintenance and adjustment

Human-oriented model indication function, real time displaying, improve the passing rate

Automatic counting indicating passenger’s number (optional)

Resetting automatically, auto cancel the pass through and closed barrier in case there’s no pass through the barrier, in a preset timing

Fail-Safe function with UPS to meet Fire-safety regulation

Break-in, tail-gate, over-pass and reverse alert function to maintain safe and effective passage

Standard input/output port to integrate with most access control systems and able to manage the integrated systems through the remote PC.

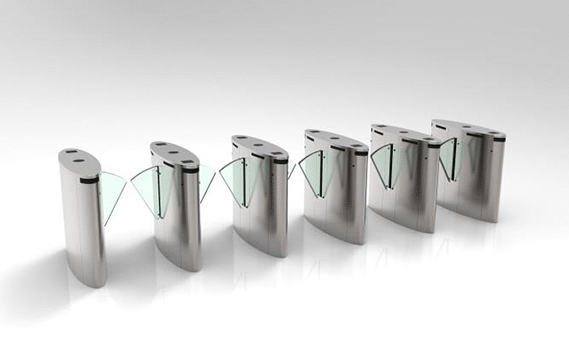

Model: NW-FP-02

Size: 1400 x 320 x 980mm

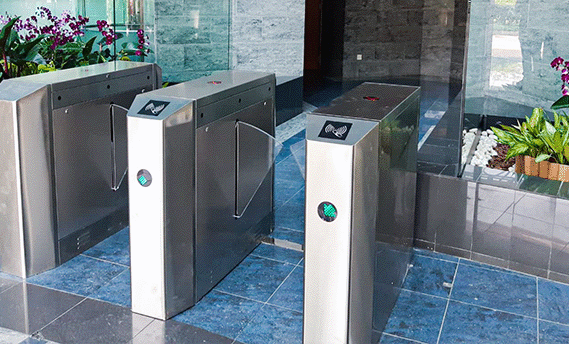

Model: NW-FP-01

Size: 1400 x 280 x 980mm

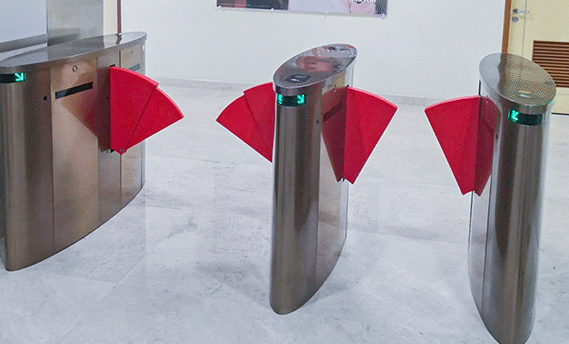

Model: NW-FP-07

Size: 1400 x 320 x 980mm

TECHNICAL SPECIFICATIONS

Model

NW-FP-02

NW-FP-01

NW-FP-07

Dimension

1400 x 320 x 980mm

1400 x 280 x 980mm

1400 x 320 x 980mm

Power voltage

AC220±10%, 50Hz

Drive voltage

AC12V + AC18V

Operation condition

-15ºC ~ +60ºC

Relative humidity

None-condensation

Input signal

12v DC level or 12v pulse>100ms

Working current

≤2000mA

Length of the flap

260mm

Service life

≥5 million

≥3 million

Communication Port

RS485

Pass speed

≤30person/minute

Structure

Frame or 304 Stainless steel cover

Open direction

Single and

Bi-Directional (optional)

Single and

Bi-Directional (optional)

Single and

Bi-Directional (optional)

Gate opening & closing time

0.5s

IP Degree

IP54

IP43

Width of Passage

≤550mm

≤600mm

≤900mm
