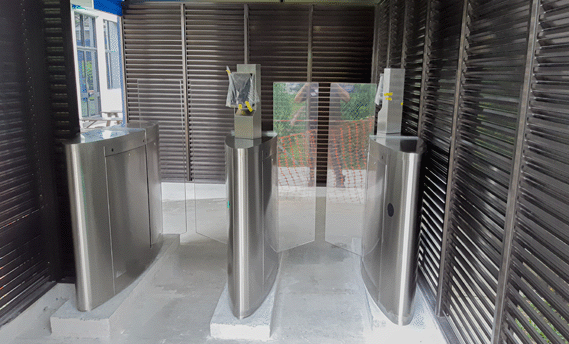

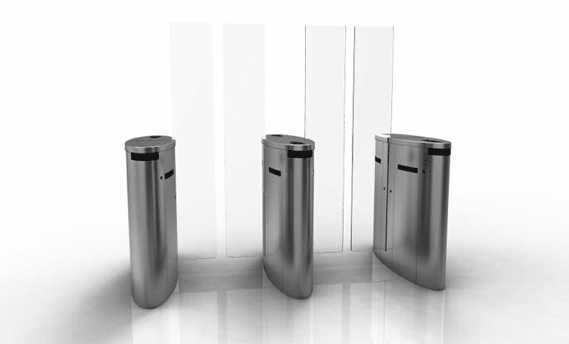

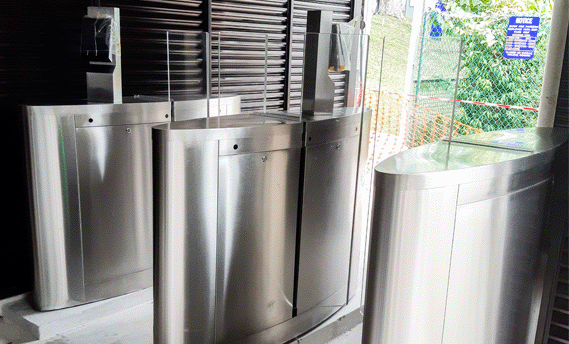

FULL HEIGHT FLAP BARRIER

FEATURES

  • Auto replacement function, reposition after person pass by



  • Flap panel automatically open when power off, ensure unblock during emergency



  • Standard electronic interface, remote control through Internet which is also could connect variety card readers and receive relay signal to work



  • Diverse control mode optional, changeable due to varying to suit your requirement



  • Auto alert error function, user-friendly to maintain and operate



  • Bi-directional passage with anti-tailgating, anti-directional passage function



  • Open signal with memory or without set function (Optional)



  • Red and green light to show pass or stop, indication for Entrance and Exit

Model: NW-FHF-02

Size: 1410 x 340 x 1005mm

TECHNICAL SPECIFICATIONS

Power voltage

AC220±10%, 50Hz

Dimension

1410 x 340 x 1005mm

Operation condition

-25ºC ~ +70ºC

Relative humidity

≤95%, None-condensation

Input signal

12v DC level or 12v pulse>100ms

Working current

≤2000mA

Height of Panel

Up to 1400mm

Pass Speed

≤35 person/minute

Drive Voltage

DC24V 5A

Communication Port

RS485

Structure

SS304/SS316 available

Open direction

Single and Double (optional)

Gate opening and closing time

0.5seconds

IP Degree

IP44

Width of Passage

≤600mm

Service Life

≥ 3 million times
